特點與用途/Features & Applications

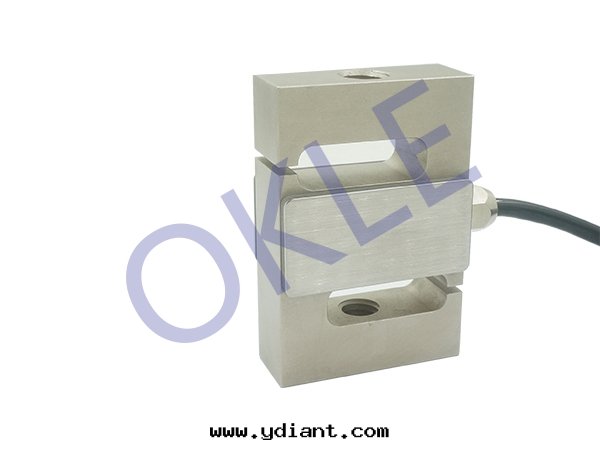

●S型傳感器
●安装方便
●拉壓双向
●主要用于推、拉力計，料斗秤，各種工業稱重系统等

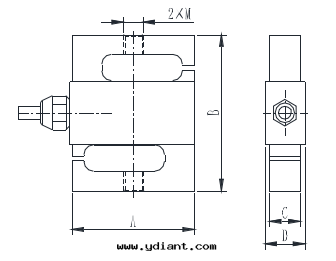

安装尺寸/Mounting Dimension
Cap（kg） | A | B | C | D | M |
25、50 | 50.8 | 63.5 | 12.7 | 16.5 | M8 |
100 | 50.8 | 76.2 | 19 | 28 | M10 |
200、250、500、750 | 50.8 | 76.2 | 19 | 28 | M12 |
1000、1500 | 50.8 | 76.2 | 25.4 | 35 | M12 |
2000、2500、5000 | 76.2 | 108 | 25 | 31 | M18×1.5 |
10000 | 127 | 177.8 | 50.4 | 57 | M30×2 |
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity | 25,50,100,200,250,500kg 0.75,1,1.5,2,2.5,5,10t |
輸出靈敏度 | Rated output | 3.0±1%mV/V |
零點輸出 | Zero balance | ±0.06mV/V |
非線性 | Non-linearity | 0.03%F.S. |
滞後 | Hysteresis | 0.03% F.S. |
重複性 | Repeatability | 0.03%F.S. |
蠕變（30min） | Creep(30min) | 0.024%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
輸入電阻 | Input impedance | 381±10Ω |
輸出電阻 | Output impedance | 350±5Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -30~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | Φ5×3000mm |
材料 | Material | Alloy stell(合金鋼) |
防護等級 | IP Class | IP66 |
