特點與用途/Features & Applications
●電阻应變为敏感元件和集成電路構成的一體産品;
●精度高，性能穩定可靠;
●沒有集流环等磨損件，可高速长时間運轉，輸出正反轉扭矩信号;
●两端均为键連接;
●最高轉速不超过1800轉/分鐘。

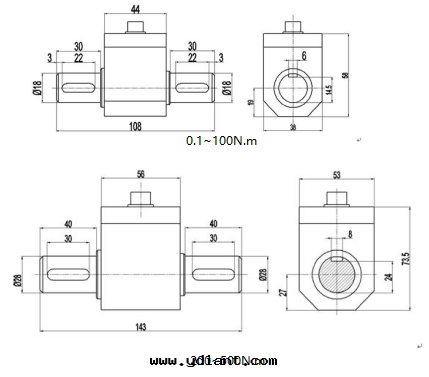

安裝尺寸/Mounting Dimension
配線图/ Wiring Code
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 0.1,0.2,0.3,0.5,1,2,3,5,10,20 30,50,100,200,300,500N.m |
輸出靈敏度 | Rated output | 1.0~1.5mV/V |
零點輸出 | Zero balance | ±1% F.S. |
非線性 | Non-linearity | 0.2%F.S. |
滞後 | Hysteresis | 0.2%F.S. |
重複性 | Repeatability | 0.1%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
輸入電阻 | Input impedance | 350/700±10Ω |
輸出電阻 | Output impedance | 350/700±10Ω |
絕緣電阻 | Insulation | ≥2000MΩ/100VDC |
激勵電壓 | Recommended excitation | 12V |
最大激勵電壓 | Maximum excitation | 15V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~60℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 150%F.S. |
電缆線尺寸 | Cable size | 3m |
防護等級 | IP Class | IP66 |
