特點與用途/Features & Applications
●微型傳感器，高度低，變形量小
●不鏽鋼材料
●拉壓双向
●主要用于汽車壓装、自動化组装、3C産品測試、新能源産品组装、醫療檢測、機器人領域、模具组装等工業自動化領域

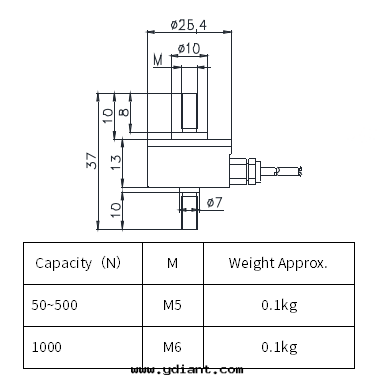

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity | 50,100, 200, 300N 500,1000,2000N |
輸出靈敏度 | Rated output | 2.0±10%mV/V |
零點輸出 | Zero balance | ±0.05mV/V |
非線性 | Non-linearity | 0.1%F.S. |
滞後 | Hysteresis | 0.1%F.S. |
重複性 | Repeatability | 0.1%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 800~1100Ω |
輸出電阻 | Output impedance | 800~1100Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 10V |
最大激勵電壓 | Maximum excitation | 15V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | φ3×3000mm |
TEDS可选 | ||
