特點與用途/Features & Applications
●微型傳感器、精度高、防过载
●不鏽鋼或鋁合金材料
●拉壓双向
●主要應用于電腦等各種3C産品按鍵力測試，各種開關按鍵測試，各種插拔力測試、醫療檢測、及其他工業測試、測量及控制系统
●動态響應頻率高

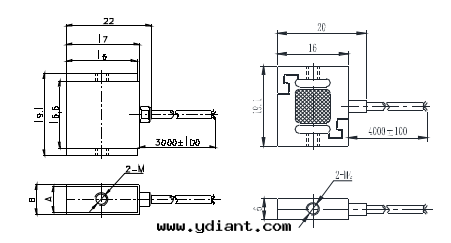

安装尺寸/Mounting Dimension
Capacity（N） | A | B | M | 备注 |
2.5,5,10,20 | 5 | 6.8 | M3 | 带外殼定制可选 |
50,100,200,300,500 | 6 | 7.5 | M4 | 不带外殼可选 |
受力方式/Load Direction | 配線图/ Wiring Code  |
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity | 1,2.5,5,10,20,50,100,200, 300,500N |
輸出靈敏度 | Rated output | 2.0±10%mV/V |
零點輸出 | Zero balance | ±0.02 mV/V |
非線性 | Non-linearity | 0.05%F.S. |
滞後 | Hysteresis | 0.05%F.S. |
重複性 | Repeatability | 0.05%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 350±30Ω |
輸出電阻 | Output impedance | 350±5Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5V |
最大激勵電壓 | Maximum excitation | 15V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
電缆線尺寸 | Cable size | φ2×3000mm |
TEDS可选 | ||
