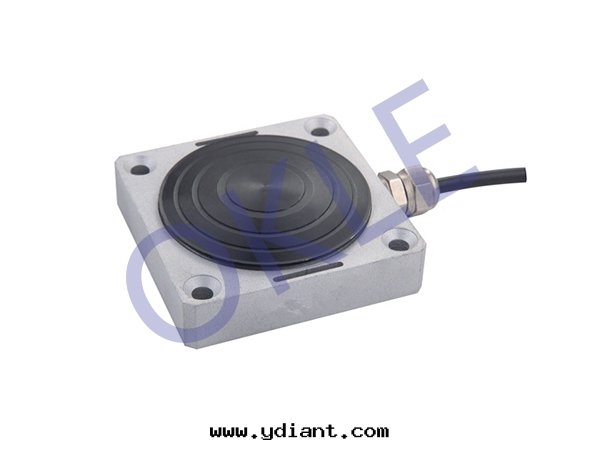

特點與用途/Features & Applications
●結構緊湊便于安装
●防護等級：IP65
●主要用于刹車壓力測量

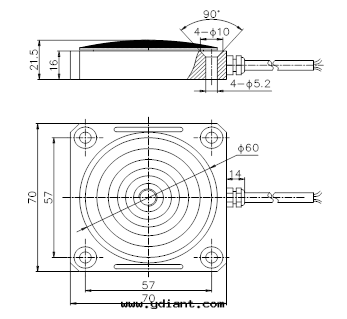

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity | 500,1000, 1500, 2500, 5000N |
輸出靈敏度 | Rated output | 1.5±10% mV/V |
零點輸出 | Zero balance | ±2% F.S. |
非線性 | Non-linearity | 0.2%F.S. |
滞後 | Hysteresis | 0.1%F.S. |
重複性 | Repeatability | 0.1%F.S. |
蠕變（30min） | Creep(30min) | 0.05%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.03%F.S./10℃ |
輸入電阻 | Input impedance | 780±30Ω |
輸出電阻 | Output impedance | 700±10Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | Φ4×2000mm |
材料 | Material | aluminum alloy(鋁合金) |
單件重量 | Weight approx. | 0.4kg |
防護等級 | IP Class | IP67 |
