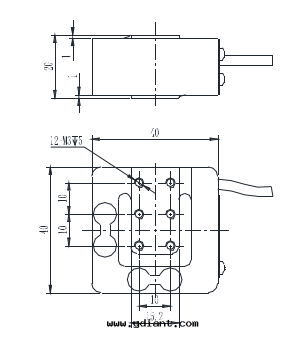

安裝尺寸/Mounting Dimension
受力方式/Load Direction

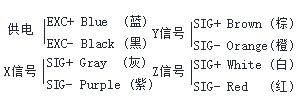

| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity（N） | X: 5/10/20/30/50 Y: 5/10/20/30/50 Z:5/10/20/30/50 |
輸出靈敏度 | Rated output | ≈1.0mV/V |
零點輸出 | Zero balance | ±2%F.S. |
非線性 | Non-linearity | 0.2%F.S. |
滞後 | Hysteresis | 0.2%F.S. |
重複性 | Repeatability | 0.2%F.S. |
互擾誤差 | Interference error | 0.5%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.1%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.1%F.S./10℃ |
輸入電阻 | Input impedance | 350±10Ω |
輸出電阻 | Output impedance | 350±10Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~12V |
最大激勵電壓 | Maximum excitation | 15V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -20~75℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
電缆線尺寸 | Cable size | Φ3.2×3000mm |
