特點與用途/Features & Applications
●不鏽鋼材質，穩定性強
●适用于各種环境，IP68
●主要用于包装秤，料斗秤，各種工業稱重系统等

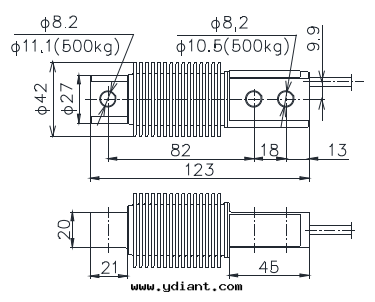

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity | 10,20,50,100,200,500 kg |
精度等級 | Accuracy class | C3 |
輸出靈敏度 | Rated output | 2.0±0.05mV/V |
零點輸出 | Zero balance | ±2%F.S. |
非線性 | Non-linearity | 0.018%F.S. |
滞後 | Hysteresis | 0.017%F.S. |
重複性 | Repeatability | 0.018%F.S. |
蠕變（30min） | Creep(30min) | 0.0166%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.008%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.0125%F.S./10℃ |
輸入電阻 | Input impedance | 390±5Ω |
輸出電阻 | Output impedance | 350±5Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -30~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
電缆線尺寸 | Cable size | Φ5.4×1500mm |
材料 | Material | Stainless Steel（不鏽鋼） |
防護等級 | IP Class | IP68 |
