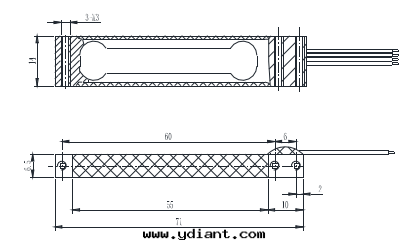

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity | 100,200g |
精度等級 | Accuracy class | C3 |
輸出靈敏度 | Rated output | 0.9±0.1mV/V |
零點輸出 | Zero balance | ±0.05 mV/V |
非線性 | Non-linearity | 0.015%F.S. |
滞後 | Hysteresis | 0.015%F.S. |
重複性 | Repeatability | 0.015%F.S. |
蠕變（30min） | Creep(30min) | 0.0166%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.03%F.S./10℃ |
輸入電阻 | Input impedance | 405±20Ω |
輸出電阻 | Output impedance | 350±10Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -10~50℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | 4-Φ1×100mm |
材料 | Material | aluminum alloy |
防護等級 | IP Class | IP65 |
最大秤盤尺寸 | Max.platform size | 50mm×50mm |
